GAS DETECTORS

GAS DETECTORS

Point Combustible Gas Detection



POINTWATCH ECLIPSE® INFRARED HYDROCARBON GAS DETECTOR
  • Top selling gas detector
  • Performance certified to detect methane, propane, ethylene and butane
  • Rugged IP66/67 stainless steel construction and extended interval testing
  • Local indication and intrinsically safe HART port; local display optional
  • Global certifications (SIL 2/FM/CSA/ATEX/IECEx)
  • 5-year device warranty



CGS CATALYTIC BEAD SENSOR
  • Best sensor for high temperature and hydrogen detection applications
  • Cost-effective solution to detect a broad range of combustible gases
  • Rugged, stainless steel construction
  • Certified SIL 2 capable when used with FlexVu® UD10 or UD30 Universal Display

Point Toxic Gas Detection




GT3000 ELECTROCHEMICAL TOXIC GAS DETECTOR
  • Detects hydrogen sulfide, hydrogen, oxygen, carbon monoxide, nitrogen
    dioxide, ammonia, chlorine or sulfur dioxide
  • Certified SIL 2 capable (oxygen and hydrogen sulfide) sensors
  • Intrinsically safe sensors can be hot-swapped in the field


POINTWATCH ECLIPSE® INFRARED CARBON DIOXIDE GAS DETECTOR
  • Quickly detects hazardous levels of carbon dioxide
  • Tri-color LED local status indication enables maintenance efficiency
  • Proven performance
  • 5-year device warranty

Line-of-sight Detection





FLEXSIGHT™ LS2000 LINE-OF-SIGHT INFRARED  HYDROCARBON GAS DETECTOR

  • Fast and easy to install, align, commission and maintain
  • Wide optical field of view (0.8o), consistentsignal strength, and robust housing design help meet rigorous performance standards
  • Performance approved to FM 6325
  • Ten-year IR source warranty; 5-year device warranty
  • exida safety award winner

Acoustic Leak Detection



FLEXSONIC® ACOUSTIC LEAK DETECTOR
  • Instantaneous response to pressurized gas leaks; no contact with gas required
  • Sensitivity unaffected by wind direction or leak location
  • Foam filter option for protection in dry, sandy environments
  • Standard base settings useful for most applications
  • Patented Learn Function customizes detection to ignore ultrasonic false alarm sources
  • exida safety award winner

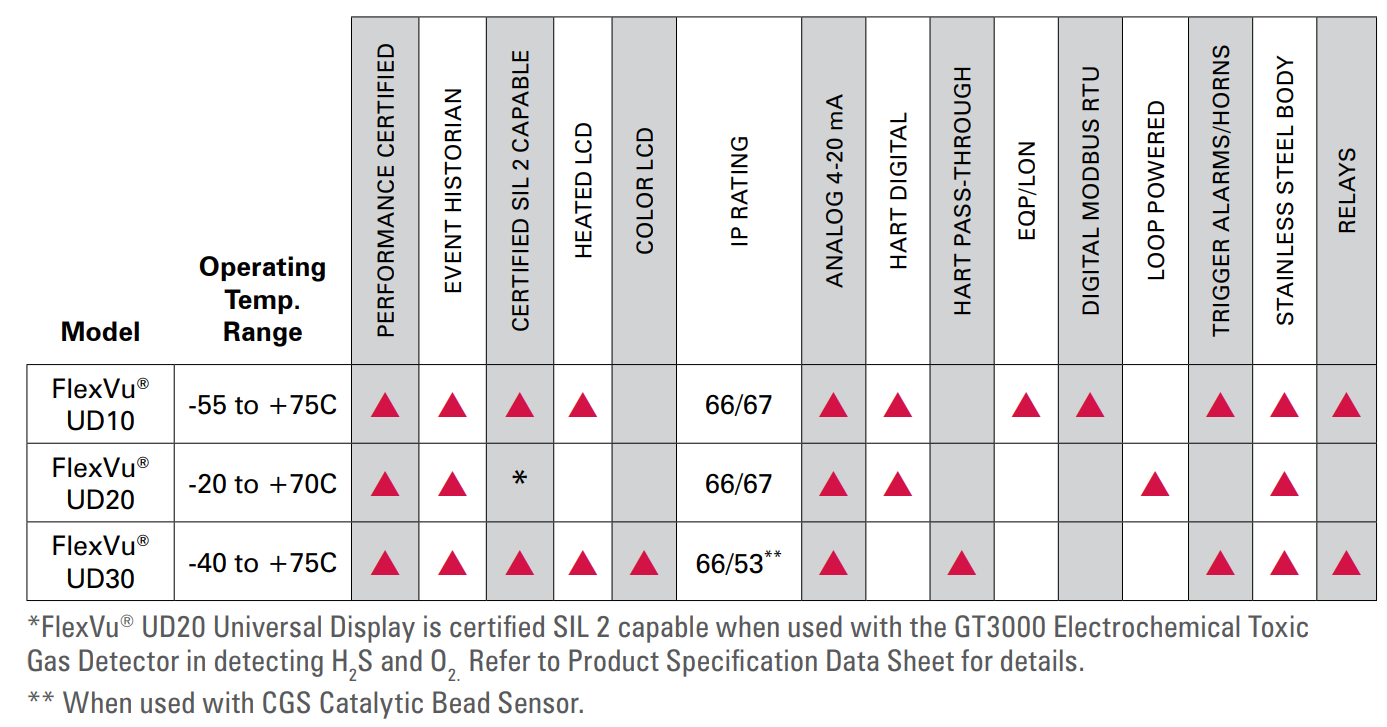

Universal Displays



FLEXVU® UNIVERSAL DISPLAY FAMILY
  • Supports both Det-Tronics combustible and toxic gas sensors and other 4-20 mA devices
  • Non-intrusive, one-person calibration, logging and diagnostics
  • Easy to integrate and navigate

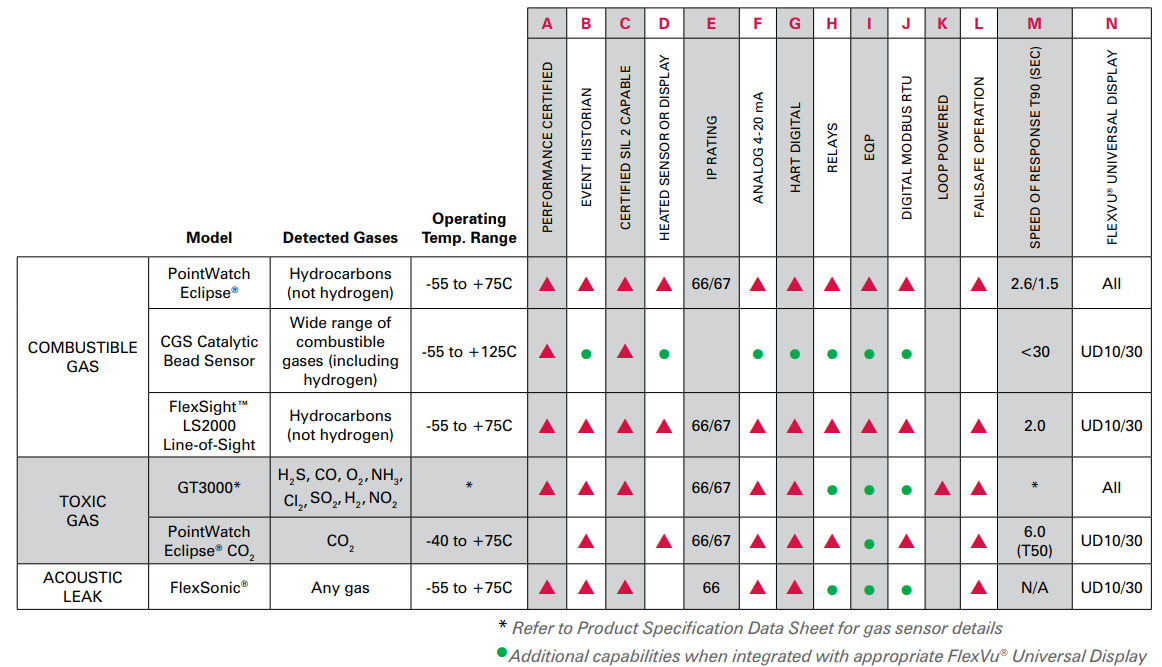

Multiple Options



Refer to Product Specification Data sheet for details.

A Performance Certified: Outside laboratories independently validate Det-Tronics accuracy across the temperature range.

B Event Historian: Most sensors maintain calibration logs and usage history. When combined with a FlexVu® Universal Display, additional
diagnostic information is maintained, such as alarm events and faults.

C Certified SIL 2 capable: Det-Tronics uses exida to verify and certify the reliability of combustible gas and toxic gas detectors and displays.

D Heated Sensors or Displays: Det-Tronics detectors have heater options for extreme conditions where condensation, rain, ice or snow are present.

E IP Rating: Verifies that dust and water will not affect the products’ operation, third-party testing and ratings are provided on all products.

F Analog 4-20mA: The device outputs to the most common communication method for safety systems. This method requires home run wiring  topography to the controller.

G HART Digital: The device allows for the use of the HART handheld maintenance tool. In addition, the GT3000, UD10 and Eclipse are FDT/DTM and AMS compatible.

H Relays: The device has multiple relay outputs to drive local horns and alarms without the need to connect to a controller.

I EQP/LON: The device is compatible with Det-Tronics Eagle Quantum Premier (EQP) Safety System. The EQP uses an addressable loop, which allows customers to use loop wiring techniques to reduce installation costs.

J Digital Modbus RTU: Device outputs to an addressable loop, which allows customers to use multidrop wiring techniques to reduce installation costs.

K Loop Powered: A device that uses two wires for both power and signal.

L Failsafe Operation: When the device is implemented in a system, the design prevents or mitigates unsafe consequences in the event of a failure.

M Speed of Response T90 (sec): Verified response time. (Two numbers represent with and without hydrophobic filter, respectively).

N Universal Display: FlexVu® Universal Displays provide additional capabilities and local indication
